POE POE+ POE++

        1.Running power concurrent to data over structured telecommunications cabling
        2.Power can be injected by the Ethernet switch (end-span), or Power can be injected by a device inserted into the telecommunications channel (mid-span)

ADVANTAGES

        1.Simplified infrastructure management
        2.Lowered power consumption
        3.Reduced operational costs for application such as VoIP
        4.Improved safety due to separation from the building’s main AC power ring

USING

2000:Inline Power(Cisco)
7 watts

2003:IEEE 802.3af
Original
PoE(Power over Ethernet)
standard
15watts

2007:(Cisco)
30watts

2009:IEEE 802.3AT
PoE Plus or PoE+
30 watts

2011:UPoE(Cisco)
60 watts

2011:POH
Power over HDBaset
100 watts

2016?:IEEE 802.3BT
High power PoE or PoE++
90 watts

Future:200 watts?

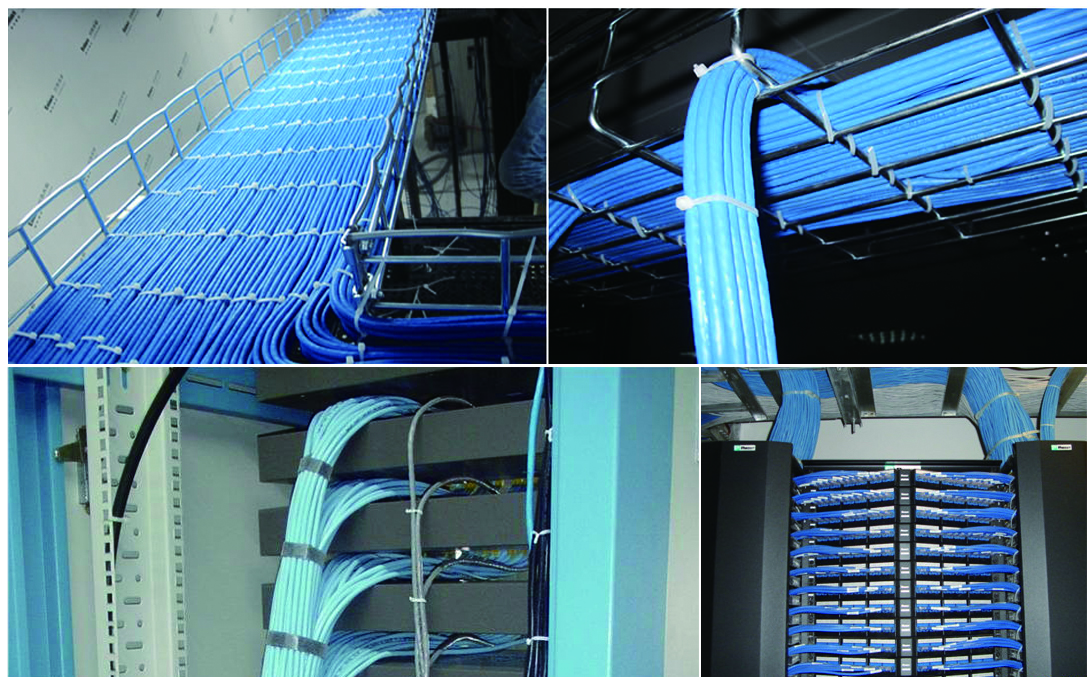

Cable laying and environment caused safety problems

Cable laying and environment  caused safety problems

ELECTRICITY SUPPLY SECURITY

ELECTRICITY SUPPLY SECURITY

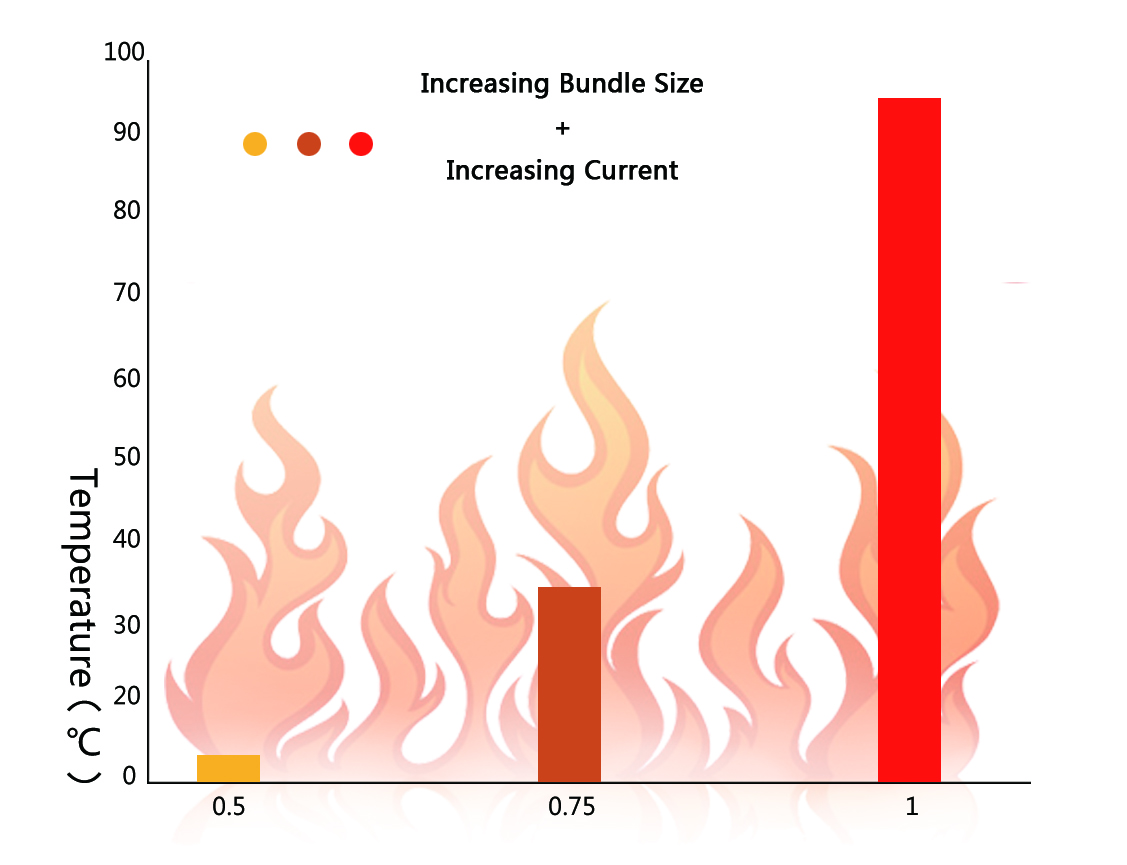

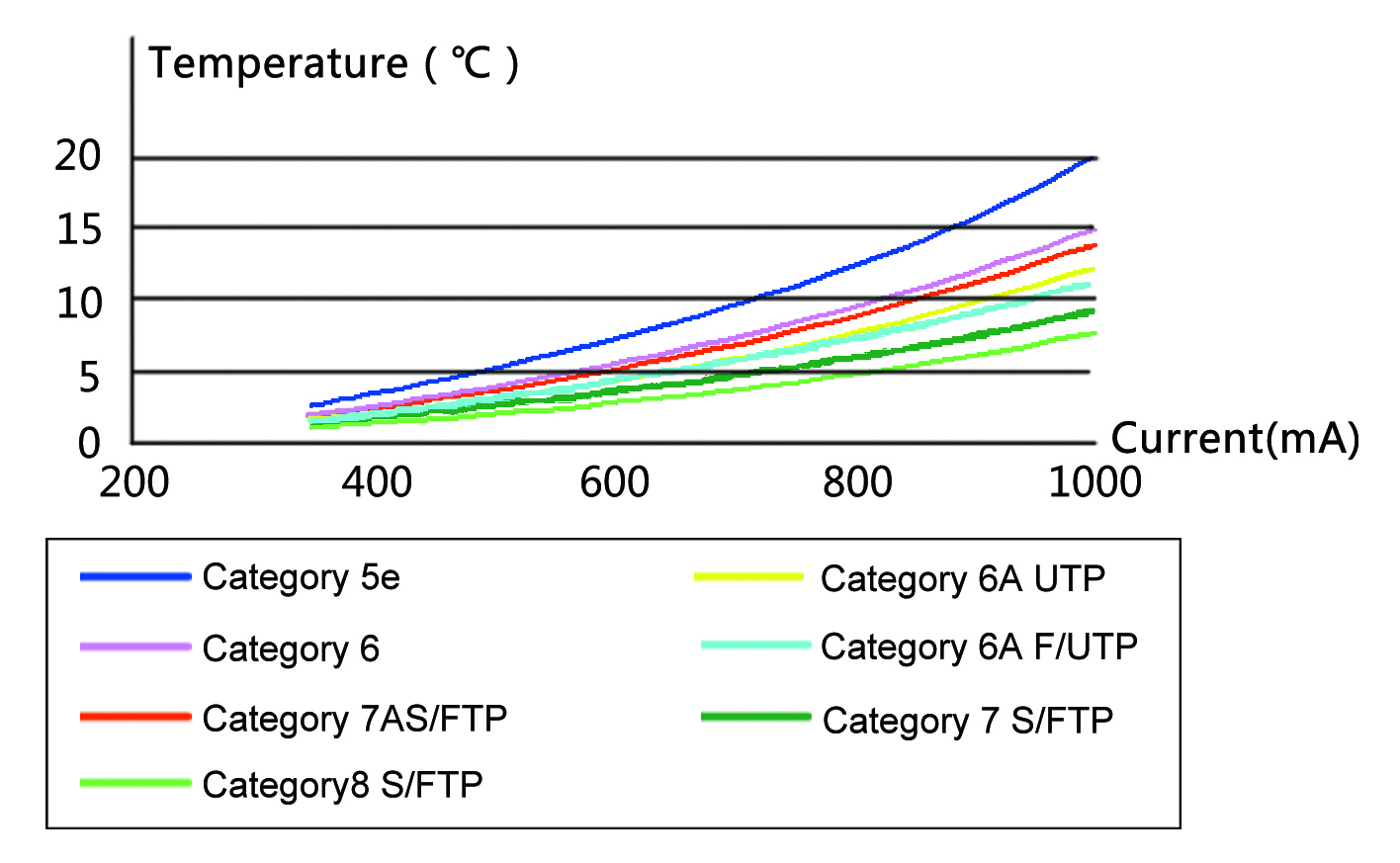

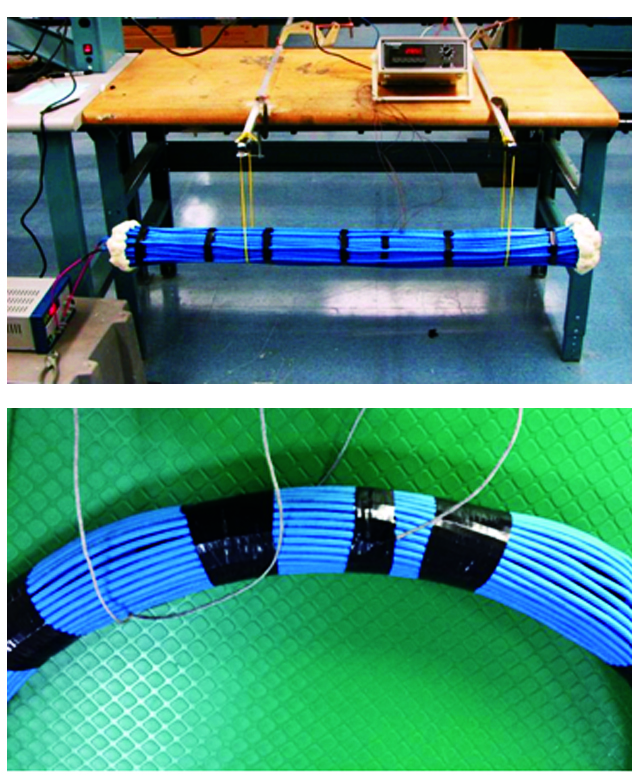

Temperature rise versus current 100-cable bundles

Temperature rise versus current 100-cable bundles

Subject to change as document goes through ballot process

  26AWG Cat5E CAT6 CAT6A CAT8
600MA 87 155 187 225 245
720MA 60 101 126 147 162
1000MA 24 52 64 74 80

Length De-Rating VS Temperature

Temperature (℃) Maximum
Horizontal length
Unscreende(m)
Maximum
Horizontal length
screende(m)
20 90.0 90.0
25 89.0 89.5
30 87.0 88.5
35 85.5 87.7
40 84.0 87.0
45 81.7 86.5
50 79.5 85.5
55 77.2 84.7
60 75.0 83.0

HAITANG POE TEST

Post Thumbnail

POE category for HAITANG CABLES

  POE POE+ POE++
CAT 5E
CAT6
CAT6A UTP
CAT6A FTP
CAT7 S/FTP
CAT7A S/FTP
CAT8.2 S/FTP
